TECHNICAL TERMS OF OFFER

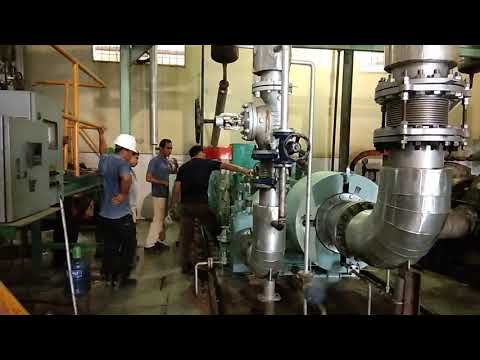

Palm Oil Steam Turbine Range 500kW - 3,000 KW SHINKO RB 4M back pressure steam turbine coupled
with Leroy Somer alternator complete with Woodward governor, electric priming oil
pump, turbine local control panel, steam ejector, rotor axial movement
sensor, two (2)
hand nozzle valve and others standard accessories etc
Steam Turbine Model : SHINKO RB 4M
Country of Origin : Japan
Type : Horizontal Curtis Single Stage with Integral Reduction Gear,
Forced Lubrication, Ejector for Extracting Gland Leakage Steam
and T & T Valve
Capacity : 1.200 KW at alternator output
Turbine / alternator Speed : 5,294 / 1.500 rpm
Steam Inlet Pressure : 24 BarG
Steam Outlet Pressure : 31 BarG
Steam Temperature : Dry Saturated
Steam Flow : 28,800 kg/hour
Specific Steam Consumpt : 24.00 kg/kwhr at full load
Steam Inlet Bore Diameter : 150 mm
Steam Exhaust Bore Diame : 400 mm
Regulation – Governor : Woodward UG 25+
GENERATOR
Make : Leroy Somer or equivalent
Model : LSA 50.2 VL10
Insulation : Class “H”
Speed : 1,500 RPM
Power Factor : 0,8
Electric : 380 volt, 3 Phase, 4 Wires, 50 Hz
Others : Self-regulating, brushless, suitable for parallel operation, fully tropicalized, etc
